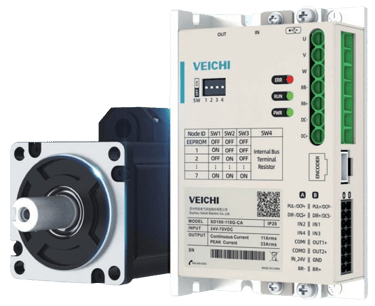

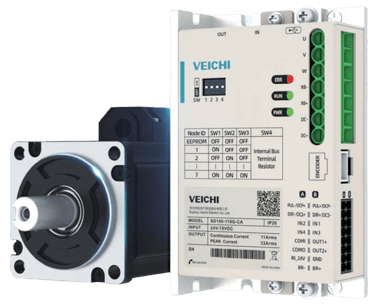

SD100 Series Low-voltage Servo Drive
Input wide voltage: DC 24-72
Dual power supply: 24V control power can be controlled independently
Multiple control modes: Position/Speed/Torque Position-Speed/Position- Torque Speed-Torque / Position- Speed-Torque
Differential input, open collector Input pulse type:
Internal 24V holding brake power supply
External regenerative braking resistor can be connected

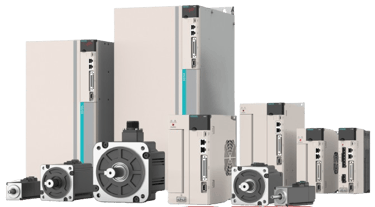

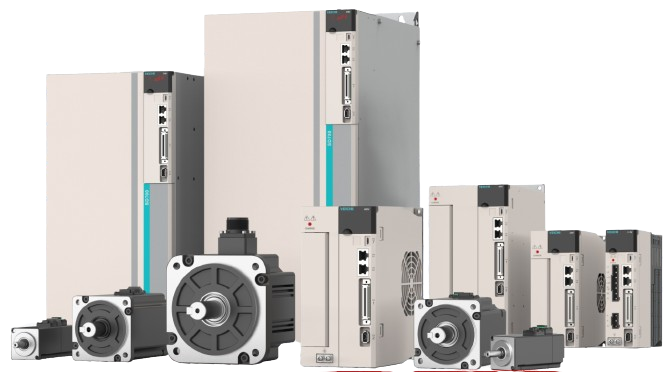

SD700 Series High Performance Servo Drive
Speed loop response bandwidth up to 3 KHz
Adopt 23-bit absolute encoder with 2.5Mpps communication speed
Robust control ensures smooth operation, widely used in manipulators
Support multi-stage vibration control function, effectively limit resonance

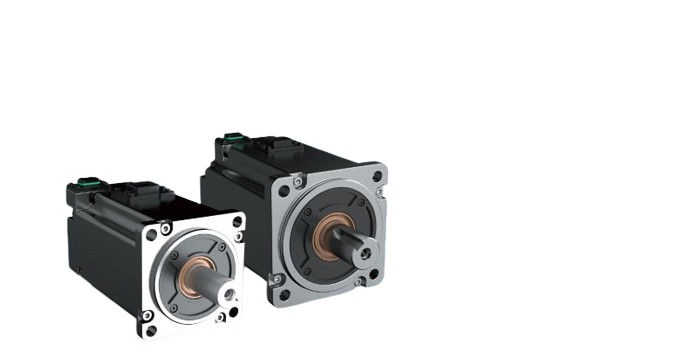

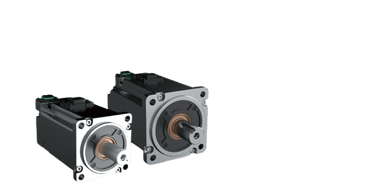

V9E Series General Servo Motor
More models, low-inertia 60/80/100/130 mm flange added.
Wider speeds, enhanced motor speed for higher working efficiency.
Smaller sizes, length shorted by 3-5%.
Superior position accuracy.
Better performance, reduced 2-4℃.
Low energy, meets Class 1 requirements of GB30253-1.
Higher protection: IP67.
