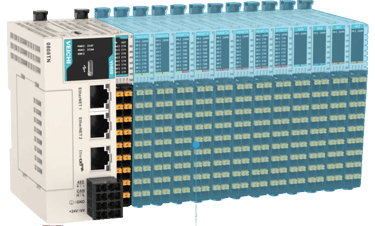

VH600 Series General-purpose Medium PLC

  • Simple Codesys integrated development environment: For multiple programming languages(LD, FBD, ST, SFC and CFC) in conformity to IEC 61131-3;

  • Precise motion control: By EtherCAT bus and pulses For up to 128 axes (32 recommended) And 16-axis electronic cam with synchronization cycle of 2ms;

  • Strong bus network: For up to 125 EtherCAT slaves (including servo axes);

  • Supports PLCopen mainstream functions.

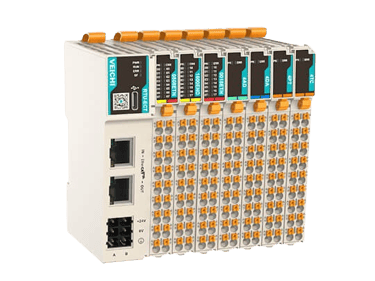

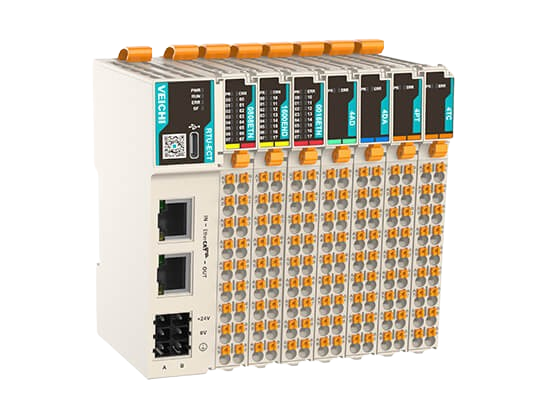

VM Series Flexible Remote Module

  • Max 16 modules supported

  • New generation of bus speed raised to 100mbps

  • 2/3 cabinet space saved off

  • D-BUS with two sides of the connecting fingers attached together for higher stability

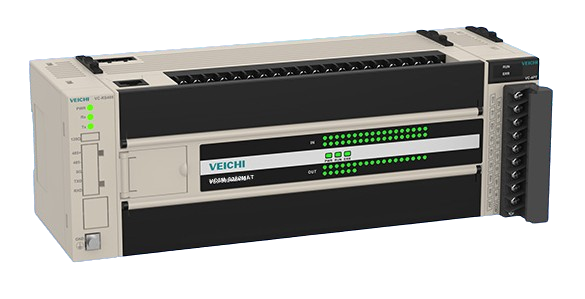

VC5 Series High Performance PLC

  • Supports 32 real axes and 32 to 64 imaginary axes with powerful motion control.

  • User program space supports 200K steps.

  • 8 channels of 200kHz high-speed input counting and 8 channels of 200kHz high-speed output.

  • RS485, CAN, Ethernet and EtherCAT, the interface can realize multi-level network communication.

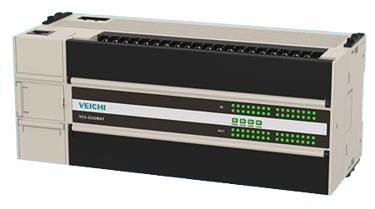

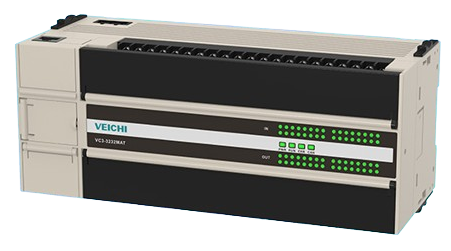

VC3 Series CAN bus Hi-Per PLC

  • VC3 series PLC has the characteristics of high performance and large capacity. It can meet a variety of increasingly complex process requirements.

  • Integrate rich motion control functions and dual-core architecture. Make your device refinedexercise.

  • Powerful communication function. Integrated Ethernet, CANopen, RS-485, RS-232, and Type-C interfaces allow seamless communication of automation equipment.

  • The convenient, efficient and friendly graphical interface greatly improves the efficiency of developing applications.

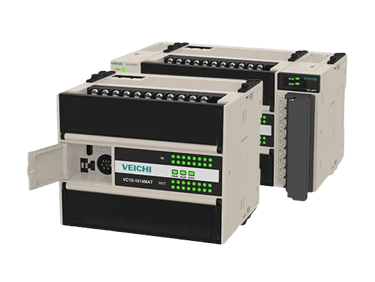

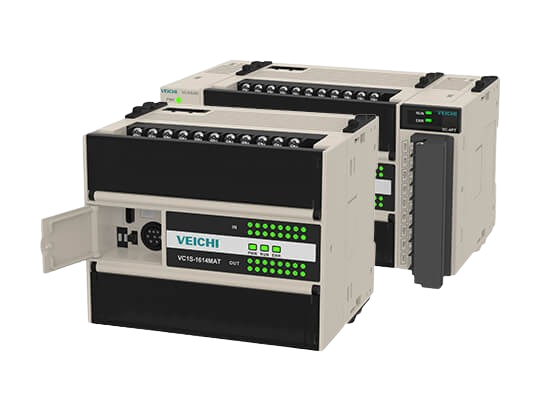

VC1 Series PLC

  • User program supports up to 16k steps.

  • Support USB communication,make debugging more convenient and quick.

  • 2 channels of 50kHz high-speed counting, 6 channels of 10kHz high-speed counting.

  • Can expand 1 way 485 through the left expansion module.
